Tire Service International Tire Inspector TI-96

Product Description

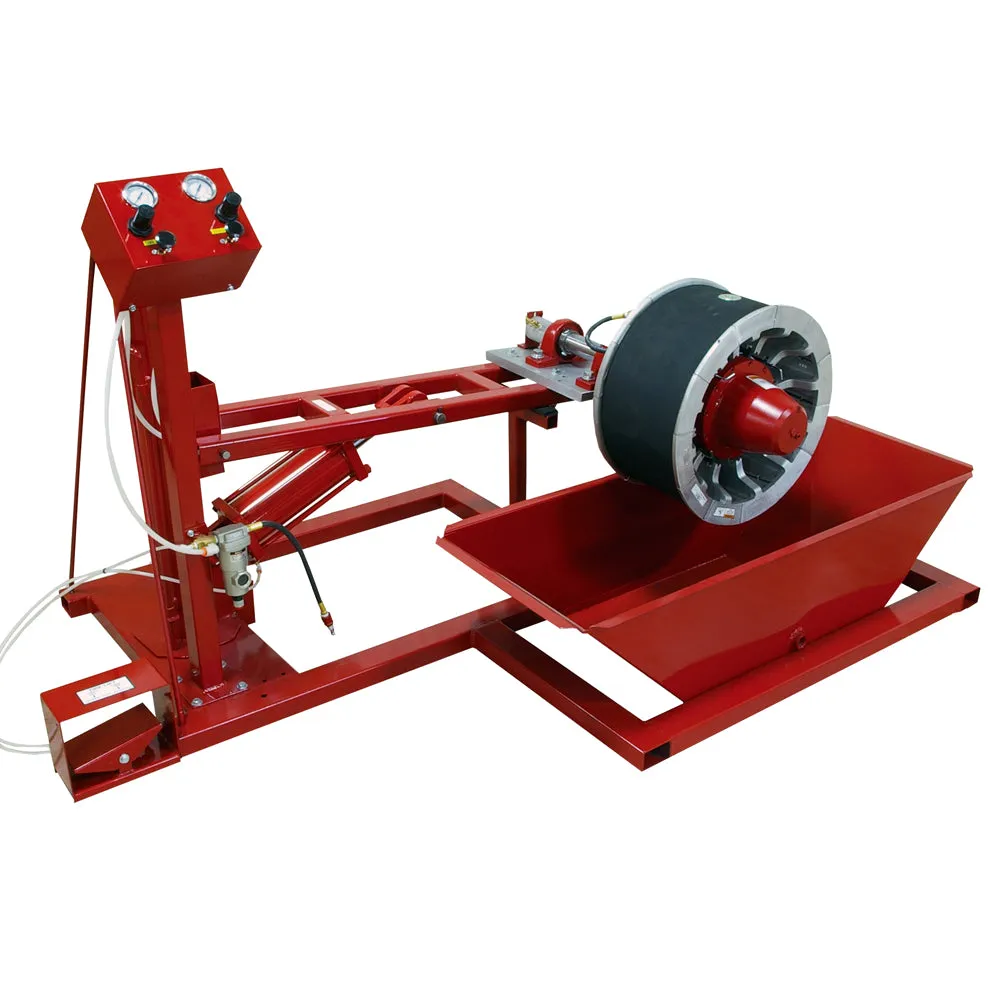

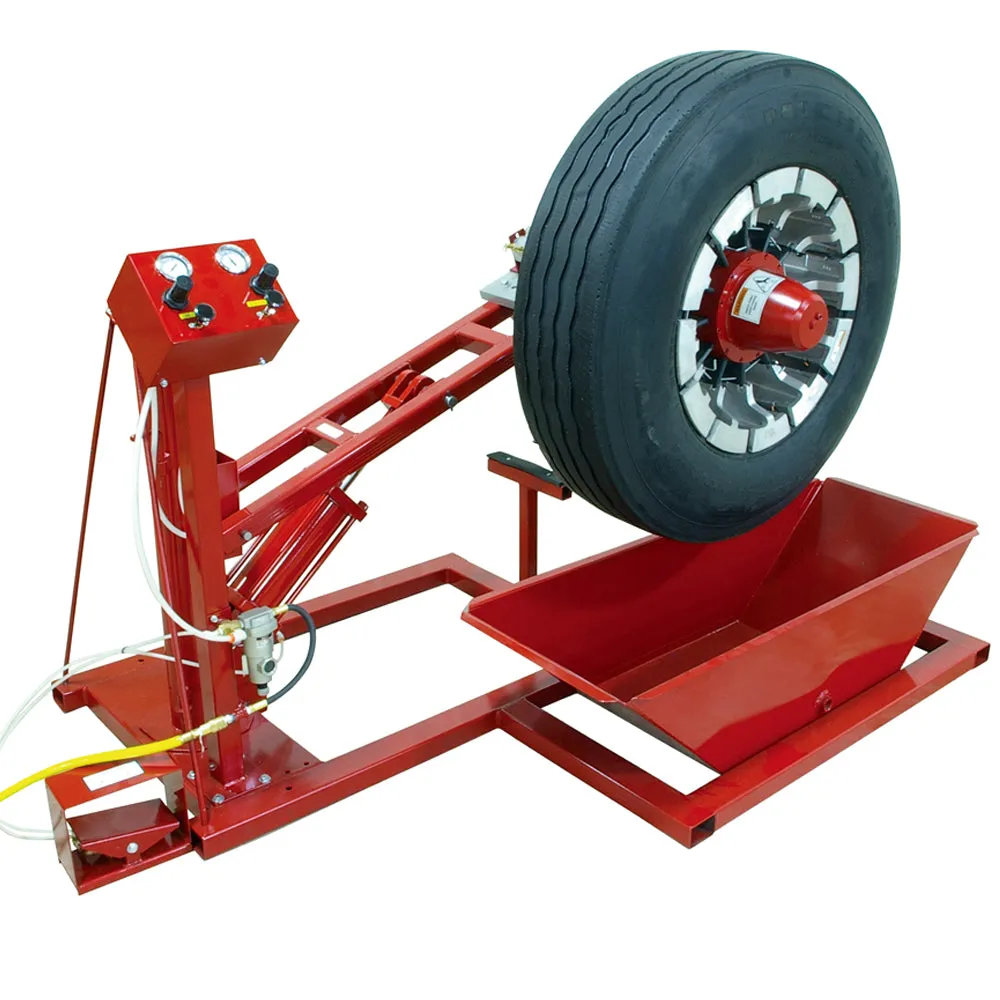

The TI-96 Tire Inspector is designed to inspect non mounted tires from 13” to 24.5” using an expandable hub and rim assembly.  The TI-96 allows the operator to inspect tires for tread leakage using a dunk test tank.  A foot operated power lift will save time and injury by lifting those heavy tires from floor into the test tank. Quick and easy inspection is accomplished by using an expandable hub and expandable rim assemblies.  The TI-96 tire and hub assembly rotates easily for inspection and all operating controls are located on the side of the machine for easy operation. A standard 1/4”, 90 PSI air line operates the unit and no electricity is required.  We recommend the use of a good quality dual stage compressor for optimum results.

• Includes the standard 22″ – 24.5″ expandable rim assembly
• Other expandable rims are available to accommodate passenger and light truck tires

Weight and Dimensions

• Weight    651 lbs

• Dimensions    55 × 80 × 52 in

Product Documents

Product Brochure

Operation Manual

Expandable Rim/Hub Troubleshooting

Expandable Rim Brochure

Parts & Assembly

Expandable Hub Parts & Assembly

Expandable Rim Parts & Assembly
